6.3" compact size , low-power Super Sunlight Display,
5th -generation Snapdragon 8 Extreme Edition mobile platform, 6300mAh Xiaomi Jinshajiang battery, 100W Xiaomi Surge wired charging | 50W Xiaomi Surge wireless charging , Leica optics, Summilux high-speed lens, 50MP Leica high-dynamic range main camera | Light Hunter 950L image sensor, 50MP Leica floating periscope telephoto lens | 50MP Leica ultra-wide angle, dual stereo speakers | high-dynamic range 4-mic array, UWB ultra-wideband interconnect technology, Xiaomi HyperOS 3

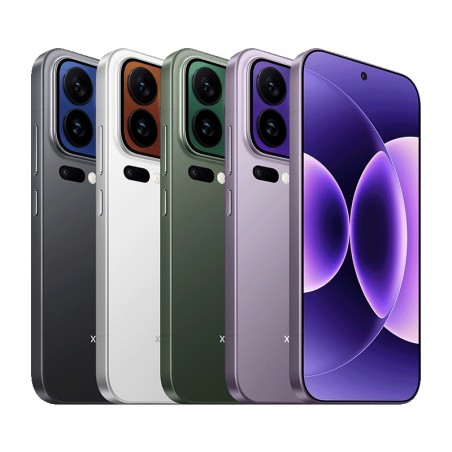

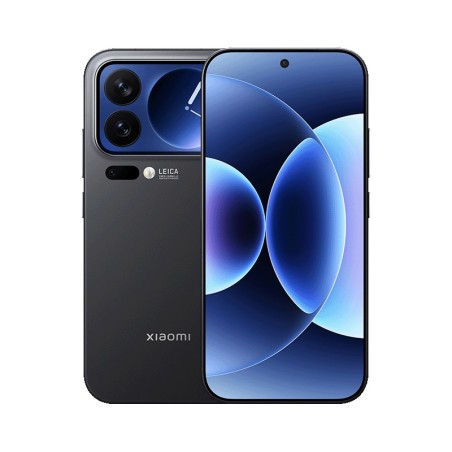

black
![]()

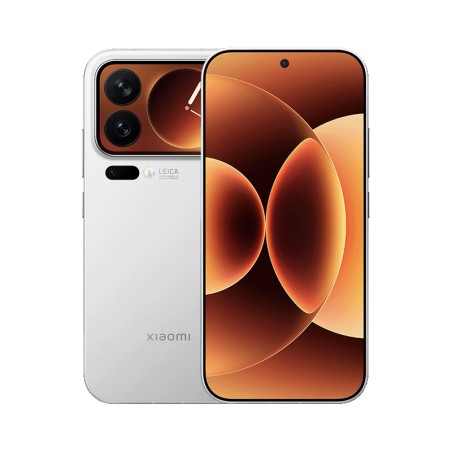

White
![]()
Cold Smoke Purple
![]()

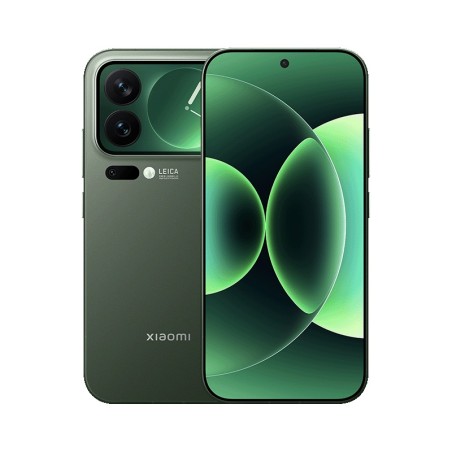

Morino Green
![]()
![]()
Dimensions
Length: 151.1mm
Width: 71.8mm
Thickness: 8.0mm
Weight: 192g
*The above data is tested in Xiaomi laboratories. Actual results may vary slightly due to different measurement methods in the industry.
Memory capacity
16GB+1TB Maximum optional
running memory: 12GB / 16GB LPDDR5X high-speed memory
Body storage: 256GB / 512GB / 1TB UFS 4.1 high-speed storage
*The actual available capacity will be less and vary due to many factors: Because the operating system occupies part of the memory (RAM), the actual available space is less than the indicated memory capacity;
because the operating system and pre-installed programs occupy part of the flash memory (ROM), the actual available storage space is less than the indicated flash memory capacity.
Mobile Platform
Fifth-generation Snapdragon 8 Extreme Edition mobile platform
SoC Process: TSMC's third-generation 3nm process
CPU: Third-generation Qualcomm Oryon CPU, up to 4.60GHz
GPU: Adreno ™ GPU Graphics Processor
AI: Qualcomm AI Engine
Screen Display
*Screen full brightness range, single pulse DC dimming is supported by default.
*Screen full brightness range, single pulse DC dimming is supported by default.
*The Xiaomi 17 Pro display features a beautifully curved, rounded corner design, with all four corners contained within a standard rectangle. When measured within this standard rectangle, the front screen measures 6.3 inches diagonally, and the back screen measures
2.7 inches diagonally (actual viewable area is less).
Front screen
6.3″ 1.5K low-power super sunlight screen
Type: AMOLED
Resolution: 2656 x 1220
Display frame rate: Up to 120Hz
Touch sampling rate: Up to 300Hz
Color gamut: Supports P3 wide color gamut
Minimum brightness: 1nit
Multi-scene peak brightness: 3500nits
full brightness DC dimming*
Glass cover: Xiaomi Dragon Crystal Glass
Back screen
2.7″ low-power super sunlight screen
Type: AMOLED
Resolution: 904 x 572
Display frame rate: up to 120Hz
Touch sampling rate: up to 120Hz
Color gamut: supports P3 wide color gamut
Minimum brightness: 1nit
Multi-scene Peak brightness: 3500nits
full brightness DC dimming*
Glass cover: Xiaomi Dragon Crystal Glass
Professional primary color screen | Full-screen always-on display | Ultra-dynamic display | Wet touch control | Multi-screen same-
color display Certification: HDR10+ | HDR Vivid | Dolby Vision
Fingerprint unlocking
3D ultrasonic fingerprint
Charging life
Charging speed, duration, and other data are all collected from our laboratory data. Actual results may vary slightly due to different test software versions and specific testing environments. Actual usage time shall prevail.
6300mAh (typ) / 6150mAh (min)
built-in high-energy-density battery, non-removable
USB Type-C reversible charging interface.
The phone supports QC3+ / QC3.0 / QC2.0 / PD3.0 / PD2.0 fast charging protocols / 100W PPS universal fast charging protocol
. 100W Xiaomi Surge wired charging / 50W Xiaomi Surge wireless charging
22.5W wired/wireless reverse charging
Camera System
Leica optics, Summilux high-speed lens,
Leica ultra-high dynamic range (HDR) main camera: 50MP | Light Hunter 950L image sensor | ƒ /1.67 aperture | 23mm equivalent focal length
| 4-in-1 2.44μm large pixel output | OIS optical image stabilization | QPD focus | 1G+6P aspherical high-resolution lens system |
Leica floating periscope telephoto: 50MP | ƒ /3.0 aperture | 5x optical zoom | 20cm telephoto macro | OIS optical image stabilization
| Leica ultra-wide-angle: 50MP | ƒ /2.4 aperture | 17mm equivalent focal length | 102° ultra-wide angle of view | 5cm super macro | AF Autofocus
rear camera supports
back-screen selfie, back-screen preview, back-screen portrait, dynamic photo, automatic super moon, photo watermark, Leica native dual image quality, Dolby Vision,
motion capture, professional presets, super night scene, all-object tracking, audio tracking, portrait blur, master lens package, smart beauty, video beauty,
street photography, professional mode, time-lapse photography, document mode, slow motion, long exposure, ID card copy, panorama, countdown photo, voice control photo,
touch screen photo, timed continuous shooting, reference line, level meter.
Rear video shooting frame rate
8K video shooting: 30fps
4K video shooting: 30 / 60 / 120fps
1080P video shooting: 30 / 60fps
720P video shooting: 30fps
Slow motion video shooting: 720P 120fps / 240fps / 480fps / 960fps / 1920fps
Slow motion video shooting: 1080P 120fps
Front-facing 50MP HD camera (50MP) / 240fps / 960fps | ƒ /2.2 large aperture | 90° wide viewing angle | Autofocus | Dynamic Photo | Smart Beauty | Portrait Blur | Photo Watermark | Video Beauty | Time-lapse | Slow Motion | Video Prompter | Countdown Photography | Gesture Photography | Voice Control Photography | Touchscreen Photography | Reference Lines | Front-facing video shooting frame rate : 4K video shooting at 30 / 60fps ; 1080P video shooting at 30 / 60fps ; 720P video shooting at 30fps
Network frequency band
Supports dual Nano-SIM card slots, 5G network support for all carriers① Supports
China Mobile/China Unicom/China Telecom/China Broadcasting② 5G /4G/3G/2G ③
Supports dual SIM dual pass, dual SIM HD voice④
Supported frequency bands
5G: n1 / n2 / n3 / n5 / n7 / n8 / n12 / n18 / n20 / n25 / n26 / n28 / n38 / n40 / n41 / n48 / n66 / n77
/ n78 / n80 / n81 / n83 / n84 / n89
Note: The actual network and frequency band usage depends on local operator deployment. The n3 / n80 / n81 / n89 bands must be supported through software upgrades after operator release.
4G: FDD-LTE: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B17 / B18 / B19 / B20 / B25 / B26 / B28 / B66
TDD-LTE: B34 / B38 / B39 / B40 / B41 / B42 / B48
Note: LTE B41 (2496-2690 194MHz);
3G: WCDMA: B1 / B2 / B4 / B5 / B6 / B8 / B19
2G: GSM: B2 / B3 / B5 / B8
Supports 4×4 MIMO antenna technology / HPUE / HO RxD
Note ①: Whether 5G is supported depends on the local operator network; when using a telecom card as a non-Internet card, HD voice service needs to be activated. If it is not activated or the local network does not support HD voice service, it cannot be used;
Note ②: Radio and Television do not support 2G and 3G networks; Radio and Television do not support MMS services;
Note ③: TD-SCDMA standard (China Mobile 3G) is not supported; CDMA 2000 EVDO standard (China Telecom 3G) is not supported; CDMA 1X standard (China Telecom 2G) is not supported;
Note ④: Dual SIM dual play only supports some frequency band combinations of 5G+5G and 5G+4G in SA mode, and supports HD voice services of China Mobile/China Unicom/China Telecom/China Radio and Television. Actual usage depends on the operator's local
network and service deployment.
Data transmission
*The USB 3 data cable must be purchased separately. The data cable included in the box does not support USB 3 transmission.
USB 3.2 Gen1
Data Connection
WLAN protocols: Wi-Fi 7, Wi-Fi 6 Enhanced, Wi-Fi 5, Wi-Fi 4 and 802.11a/b/g
WLAN frequencies: 2.4G Wi-Fi | 5G Wi-Fi
supports MLO, 2x2 MIMO, 8x8 Sounding for MU-MIMO, Wi-Fi Direct, Miracast, 2.4G, 5G dual-channel concurrent
Bluetooth: Bluetooth 5.4, Dual-Bluetooth
supports SBC / AAC / AptX / AptX HD / AptX Adaptive / LDAC / LHDC 5.0 / LC3 / MIHC
Multifunctional NFC
After activating NFC-related services in the Wallet app, you can use transit cards, Mi Pay, door cards, car keys, and more by double-clicking the power button.
Transit cards: Supports over 300 cities, and over 40 public transit cards can be migrated from your old phone to your new one free of charge. (Transit card support varies in cities due to technical requirements and other factors; actual availability is subject to change. Card terminal availability and fare discounts are subject to announcements from local governments and bus operators.)
Mi Pay: Supports online app payments, offline card swipes, QR code payments, and UnionPay tag tap-and-pay. QR code payments support
both scanning and receiving QR codes with UnionPay standard QR codes, as well as scanning and paying with standard QR codes like Alipay and WeChat.
Access cards: Physical access cards, smart door locks, community access cards, and custom blank cards. (Only door cards with a 13.56MHz frequency band can be simulated. Even if
bank or door cards with stored-value or public transportation functions are successfully simulated, these cards will not have these functions.)
Car keys: Support functions such as unlocking and starting the engine using NFC on a mobile phone.
The specific number of supported cities, city names, banks, number of cards, and car key compatible models are subject to actual conditions. For more information, please visit (https://www.mipay.com)
Navigation and positioning
Beidou: B1I + B1C + B2a | GPS: L1 + L5 | Galileo: E1 + E5a |
GLONASS: G1 | QZSS: L1 + L5 | NavIC: L5
AGNSS | Data network positioning | Wi-Fi network positioning | Sensor-assisted positioning
Video and Audio
Dual Stereo Speakers | High Dynamic Range 4-MIC Array
Headphone Port: USB Type-C (Type-C digital headphones only)
MP3, FLAC, APE, AAC, OGG, WAV, AMR, AWB
Hi-Res & Hi-Res Audio Wireless Certification | Dual Stereo Speakers | Dolby Atmos | Spatial Audio | Audio Sharing | Real-time In-Ear Monitoring |
WeChat/QQ Call Recording | HD Recording 2.0
MP4, MKV, WEBM, 3GP, TS
Supports high dynamic range display when playing HDR 10+, Dolby Vision, HDR Vivid video content
sensor
Proximity sensor | Under-screen ambient light (color temperature) sensor | Rear-mounted ambient light (color temperature) sensor | Accelerometer | Gyroscope | Electronic compass |
X-axis linear motor | Infrared remote control | Flicker sensor | Laser focus sensor | Barometer | Hall effect sensor
operating system
Xiaomi HyperOS 3
packing list
Phone | Power adapter | USB Type-C cable | Phone case | Screen protector (installed on the phone at the factory) | User manual
(with warranty) | SIM card eject pin
*This list only describes the whole machine packaging. Depending on the sales package, the accessory sets provided outside the whole machine packaging may be slightly different and are subject to the user's selection at the time of purchase.
Special Notes:
* Regarding memory and capacity, actual available capacity will be less and vary due to various factors: Because the operating system occupies some RAM, actual available space is less than the stated memory capacity; because the operating system and pre-installed programs occupy some flash memory (ROM), actual
available storage space is less than the stated flash memory capacity.
* Regarding charging speed, duration, and other figures, all data are collected in our laboratory. Actual performance may vary slightly due to different test software versions and specific testing environments. Actual usage time shall prevail.
* The screen images and product description images provided on this website are for reference only. Actual performance shall prevail.
* Product images, models, data, functions, performance, specifications, user interface, and other product information are for reference only. Xiaomi may make improvements to such information. Please refer to the actual product and its manual for specific details. Unless otherwise noted, the data shown on this website are
the results of Xiaomi's internal testing, and any comparisons are with Xiaomi products.
* The general mobile phones compared on this page are all Xiaomi-branded phones. Unless otherwise specified, the product site uses our laboratory data, design technical parameters, and data provided by suppliers. The actual data on the entire site may vary slightly due to different test software versions, specific test environments, and specific versions.
The structural pictures displayed throughout the site are functional schematics, not absolute actual structures. The actual product shall prevail.
* Recording location information. This information will be visible in the photo folder and photo watermark, and saved in the photo's attribute information. This function can be turned off through the device camera settings.
* When using ultrasonic under-screen fingerprint unlocking, third-party films may affect the fingerprint recognition effect. It is recommended to use Xiaomi official films to ensure the entry and unlocking effect.
