- 5th-generation Snapdragon 8 Extreme Edition mobile platform,
- Leica Summilux high-speed lens,
- next-generation Leica G+P lens system,
- LightHunter 950 high-dynamic range main camera | 60mm Leica floating telephoto lens,
- 50MP ultra-sensitive front camera ,
- next-generation Master Portrait
- 1.5K low-power Super Sunlight Display | ultra-narrow equilateral
- new red luminous main material,
- Xiaomi Dragon Crystal Glass
- 3D ultrasonic fingerprint sensor
- , 7000mAh Xiaomi Jinshajiang battery,
- 100W Xiaomi Surge wired charging | 50W Xiaomi Surge wireless charging,
- 3D ring cooling pump cooling system,
- Xiaomi Xingchen communication system,
- IP68 dust and water resistance,
- Xiaomi Surge OS 3

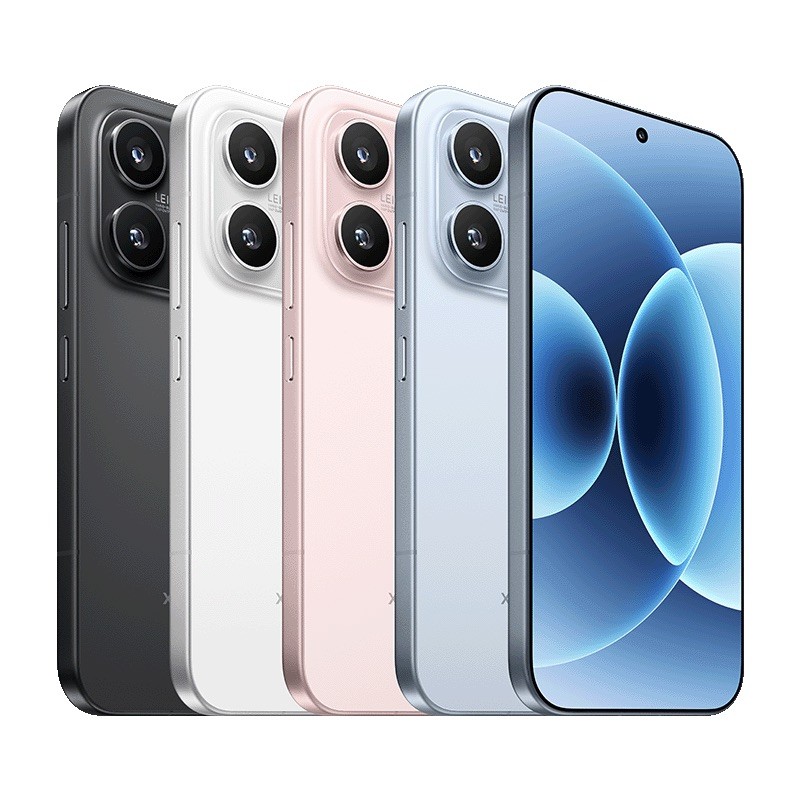

White
![]()
black
![]()
Snow Mountain Powder
![]()
Ice Melting Blue
![]()
![]()
Dimensions
Length: 151.1mm
Width: 71.8mm
Thickness: 8.06mm
Weight: 191g
*The above data is tested in Xiaomi laboratories. The thickness of the phone does not include the screen protrusion. Actual results may vary slightly due to different measurement methods in the industry.
Memory capacity
16GB+512GB Maximum optional
running memory: 12GB / 16GB LPDDR5X high-speed memory
Body storage: 256GB / 512GB UFS 4.1 high-speed storage
*The actual available capacity will be less and vary due to many factors: Because the operating system occupies part of the memory (RAM), the actual available space is less than the indicated memory capacity;
because the operating system and pre-installed programs occupy part of the flash memory (ROM), the actual available storage space is less than the indicated flash memory capacity.
Mobile Platform
Fifth-generation Snapdragon 8 Extreme Edition mobile platform
SoC Process: Third-generation 3nm process
CPU: Octa-core processor, maximum frequency up to: 4.6GHz
GPU: Adreno ™ GPU graphics processor
AI: Qualcomm AI Engine
Scree
*Global DC Dimming: Supports single-pulse DC dimming across the device's full screen brightness range.
*The Xiaomi 17 display features a beautifully curved, rounded corner design, with the four corners contained within a standard rectangle. When measured within this standard rectangle, the screen's diagonal length is 6.3 inches (actual viewable area is less).
6.3-inch 1.5K low-power super sunlight screen
Type: OLED flexible straight screen
Resolution: 2656 x 1220
Display frame rate: Up to 120Hz
Touch sampling rate: Up to 300Hz
Multi-scene peak brightness: 3500nits
Professional primary color screen | Global DC dimming* | DCI-P3 | Ultra dynamic display | Wet hand touch | Multi-screen same color
display Certification: HDR10+ l HDR Vivid l Dolby Vision
Fingerprint unlocking
3D ultrasonic fingerprint
Charging life
*Charging speed, duration, and other data are all collected in our laboratory. Actual performance may vary slightly due to different test software versions and specific test environments. Actual usage time shall prevail.
7000mAh (typ) / 6860mAh (min)
built-in single-cell high-energy-density silicon-carbon battery, non-removable
USB Type-C double-sided charging interface.
The phone supports QC3+ / QC3.0 / QC2.0 / PD3.0 / PD2.0 fast charging protocols
. Wired charging: 100W Xiaomi Surge wired second charge / PPS protocol 100W fast charge / 22.5W wired reverse fast charge;
Wireless charging: 50W Xiaomi Surge wireless second charge / 22.5W wireless reverse fast charge;
Camera System
Leica professional optical lens
50 million Light Hunter 950 high dynamic main camera: Light Hunter 950 custom image sensor | ultra-large photosensitive element | ƒ /1.67 large aperture |
equivalent to 23mm focal length | support 4-in-1 2.4μm large pixel output | support OIS optical image stabilization | QPD phase focus | LSC coating |
ALD coating | MgF2 coating | 1G+6P aspherical high lens group
50 million Leica floating telephoto: ƒ /2.0 large aperture | equivalent to 60mm focal length | 10cm~infinity focusing distance | support OIS optical image stabilization |
support Zoom EIS image stabilization
50 million Leica ultra-wide angle: ƒ /2.4 Large aperture | 102° ultra-wide angle of view | 6P lens
dynamic photo | Automatic Super Moon | Photo watermark | Leica native dual image quality | Dolby Vision | Motion capture | Professional presets | Super Night Scene |
Focus tracking | Audio tracking | Portrait blur | Master lens package | Smart beauty | Video beauty | Street photography | Professional mode | Time-lapse photography |
Document mode | Slow motion | Long exposure | ID card copy | Panorama | Countdown photo | Voice control photo | Touch screen photo | Timed continuous shooting |
Reference lines | Level meter
Rear video shooting frame rate
8K video shooting: 30fps
4K video shooting: 30 / 60fps
1080P video shooting: 30 / 60fps
720P video shooting: 30fps
Slow motion video shooting: 720P 120fps / 240fps / 480fps / 960fps / 1920fps
Slow motion video shooting: 1080P 120fps / 240fps / 960fps
50MP super-sensitive front camera with
ƒ /2.2 large aperture | 90° wide viewing angle | AF autofocus
dynamic photo | Smart beauty | Portrait blur | Photo watermark | Video beauty | Time-lapse photography | Slow motion | Video prompter | Countdown photo shooting |
Gesture photo shooting | Voice control photo shooting | Touch screen photo shooting | Reference lines
Front camera video shooting frame rate 4K video shooting: 30 / 60fps 1080P video shooting: 30 / 60fps 720P video shooting: 30fps
Network frequency band
Supports dual Nano-SIM card slots, 5G network support for all carriers① Supports
China Mobile/China Unicom/China Telecom/China Broadcasting② 5G /4G/3G/2G ③
Supports dual SIM dual pass, dual SIM HD voice④
Supported frequency bands
5G: n1 / n2 / n3 / n5 / n7 / n8 / n12 / n18 / n20 / n25 / n26 / n28 / n38 / n40 / n41 / n48 / n66 / n77
/ n78 / n80 / n81 / n83 / n84 / n89
Note: The actual network and frequency band usage depends on local operator deployment. The n3 / n80 / n81 / n89 bands must be supported through software upgrades after operator release.
4G: FDD-LTE: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B17 / B18 / B19 / B20 / B25 / B26 / B28 / B66
TDD-LTE: B34 / B38 / B39 / B40 / B41 / B42 / B48
Note: LTE B28 (uplink: 703-748MHz, downlink: 758-803MHz), B41 (2496-2690MHz, 194MHz);
3G: WCDMA: B1 / B2 / B4 / B5 / B6 / B8 / B19
2G: GSM: B2 / B3 / B5 / B8
Supports 4×4 MIMO antenna technology / HPUE / HO RxD
Note 1: Whether 5G is supported depends on the local operator's network. When using a Telecom SIM card as a non-Internet SIM card, HD Voice service must be activated. If it is not activated or the local network does not support HD Voice service, it will not be available.
Note 2: Radio and Television do not support 2G and 3G networks; Radio
and Television do not support MMS services. Note 3: TD-SCDMA (China Mobile 3G) is not supported; CDMA 2000 EVDO (China Telecom 3G) is not supported; CDMA 1X (China Telecom 2G) is not supported.
Note 4: Dual SIM Dual Pass only supports some frequency band combinations of 5G+5G and 5G+4G in SA mode, and supports HD Voice services of China Mobile, China Unicom, China Telecom, and Radio and Television. Actual usage depends on the operator's local
network and service deployment.
Data transmission
*The USB3 data cable needs to be purchased separately, and the data cable in the whole device packaging does not support USB3 transmission
USB 3.2 Gen1 theoretical maximum speed of 5Gbps
Data Connection
WLAN protocols: Wi-Fi 7, Wi-Fi 6 Enhanced, Wi-Fi 5, Wi-Fi 4 and 802.11a/b/g
WLAN frequencies: 2.4G Wi-Fi | 5G Wi-Fi
supports MLO, 2x2 MIMO, 8x8 Sounding for MU-MIMO, Wi-Fi Direct, Miracast, 2.4G, 5G dual-channel concurrent
Bluetooth: Bluetooth 5.4, Dual-Bluetooth
supports SBC/AAC/AptX/AptX HD/AptX Adaptive/LDAC/LHDC 5.0/LC3/MIHC
Multifunctional NFC
After activating NFC services in the Wallet app, you can use transportation cards, Mi Pay, door cards, and car keys by double-clicking the power button.
Transportation cards: Supports over 300 cities, and over 40 public transportation cards can be transferred from your old phone to your new phone free of charge. (Transportation card support
varies by city due to technical requirements and availability; availability of card terminals and fare discounts are subject to announcements by local governments and bus operators.)
Mi Pay: Supports online in-app payments, offline card swipes, UnionPay QR code payments, and UnionPay tag tap-and-pay.
Door cards: Supports physical door cards, smart door locks, community door cards, and custom blank cards (only 13.56MHz frequency band door cards can be simulated.
Even if successful, bank cards with door card functions and door cards with stored-value or public transportation functions will not have banking or public transportation functions).
Car keys: Supports unlocking and starting the engine using NFC on your phone.
The specific number of supported cities, city names, banks, number of cards, and car key compatible models are subject to availability. For more information, please visit
(https://www.mipay.com).
Navigation and positioning
Beidou: B1I + B1C + B2a | GPS: L1 + L5 | Galileo: E1 + E5a
| GLONASS: G1 | QZSS: L1 + L5 | NaVIC L5
AGNSS | Data network positioning | Wi-Fi network positioning | Sensor-assisted positioning
Video and Audio
Stereo dual speakers | High dynamic range 4-mic array
MP3, FLAC, APE, AAC, OGG, WAV, AMR, AWB
Hi-Res & Hi-Res Audio Wireless certified | Stereo dual speakers | Dolby Atmos | Spatial audio | Audio sharing |
Real-time in-ear monitoring | WeChat/QQ call recording | HD recording 2.0
MP4, MKV, WEBM, 3GP, TS playback
HDR 10+, Dolby Vision, HDR Vivid video content support for high dynamic range display
sensor
Proximity sensor | Under-screen ambient light (color temperature) sensor | Rear-mounted ambient light (color temperature) sensor | Accelerometer | Gyroscope | Electronic compass |
X-axis linear motor | Infrared remote control | Flicker sensor | Laser focus sensor | Barometer | Hall effect sensor
operating system
Xiaomi HyperOS 3
packing list
Mobile phone, power adapter, USB Type-C data cable, mobile phone protective case, screen protector (attached to the phone at the factory), SIM card pin, instruction manual
(including three-guarantee certificate)
Special Notes:
* Regarding memory and capacity, actual available capacity will be less and vary due to various factors: Because the operating system occupies some RAM, actual available space is less than the stated memory capacity; because the operating system and pre-installed programs occupy some flash memory (ROM), actual
available storage space is less than the stated flash memory capacity.
* Regarding charging speed, charging time, and other figures, all data are collected in Xiaomi labs. Actual performance may vary slightly due to different test software versions and specific testing environments. Actual usage time shall prevail.
* The screenshots and product description images provided on this website are for reference only. Actual performance shall prevail.
* Product images, models, data, features, performance, specifications, user interface, and other product information are for reference only. Xiaomi may make improvements to such content. Please refer to the actual product and product manual for specific information. Unless otherwise noted, the data shown on this website are
the results of Xiaomi's internal testing, and any comparisons are with Xiaomi products.
*This product is splashproof and waterproof. It has been tested under controlled laboratory conditions and has achieved IP68 level under IEC 60529 standard [Waterproof conditions are (1) no flowing water, water depth of 4 meters; (2) test time 30 minutes; (3) the temperature difference between water and product is no more than 5 degrees Celsius;]. This
product is not a professional waterproof mobile phone. The splashproof and waterproof functions are not permanent. The protective performance may decrease due to daily wear and tear. Do not charge the mobile phone when it is wet. Damage caused by immersion in liquid is not covered by the warranty.
*The general mobile phones compared on this page are all Xiaomi's own mobile phones. Unless otherwise specified, the product site is based on Xiaomi laboratory data, design technical parameters and supplier data. The actual data of the entire site may vary slightly due to different test software versions, specific test environments, and specific versions.
The structural pictures shown on the entire site are functional schematics, not absolute actual structures. The actual product shall prevail.
*Recording location information. This information will be visible in the photo folder and photo watermark, and saved in the photo attribute information. This function can be turned off through the device camera settings.
*When using ultrasonic under-screen fingerprint unlocking, third-party screen protectors may affect fingerprint recognition. It is recommended to use Xiaomi official screen protectors to ensure the best recording and unlocking effects.
